All-Purpose Pumper KVM 39 X

All-Purpose Pumper    S 38 X

This all purpose pumper places concrete at 127-feet and up to 213 cubic yards per hour.

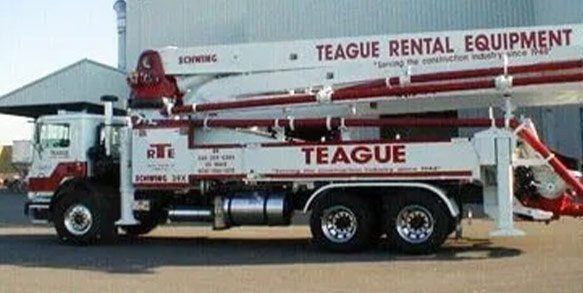

KVM 39 X Vehicle — Baton Rouge, LA — Teague Rental Equipment LLC

SPECIFICATIONS

Pump Kits
Theor. Concrete Output Per Hour (cubic yards-cubic meters)
Max. Pressure on Concrete (psi - bar)
Strokes Per Minute
Material Cylinder Diameter (in. - mm)
Material Cylinder Stroke Length (in. - mm)
Differential Cylinder Diameter (im. - mm)
Valve Type
Maximum Aggregate Size (in. - mm)

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

US METRIC
213 163
1169 80
22 22
10 254
98 2500
437 120
Std. B-Rock Std. B-Rock
2.5 63.5

Four-axle conventional truck

2023-5 11on5 MPS pump with M Rock

US METRIC
179 137
1094 76
27 27
9 230
79 2000
4.3 110
Std. M-Rock Std. M-Rock
2.5 63.5

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

Pump Kits US METRIC
Theor. Concrete Output Per Hour (cubic yards-cubic meters) 213 163
Max. Pressure on Concrete (psi - bar) 1169 80
Strokes Per Minute 22 22
Material Cylinder Diameter (in. - mm) 10 254
Material Cylinder Stroke Length (in. - mm) 98 2500
Differential Cylinder Diameter (im. - mm) 437 120
Differential Cylinder Diameter (im. - mm) Std. B-Rock Std. B-Rock
Maximum Aggregate Size (in. - mm) 2.5 63.5

Four-axle conventional truck

2023-5 11on5 MPS pump with M Rock

Pump Kits US METRIC
Theor. Concrete Output Per Hour (cubic yards-cubic meters) 179 137
Max. Pressure on Concrete (psi - bar) 1094 76
Strokes Per Minute 27 27
Material Cylinder Diameter (in. - mm) 9 230
Material Cylinder Stroke Length (in. - mm) 79 2000
Differential Cylinder Diameter (im. - mm) 4.3 110
Differential Cylinder Diameter (im. - mm) Std. M-Rock Std. M-Rock
Maximum Aggregate Size (in. - mm) 2.5 63.5

BOOM SPECIFICATIONS

Pipeline Diameter (in - mm)
Vertical Reach (ft. -in - m)
Horizontal Reach (ft. -in - m)
Net Horizontal Reach (ft. -in - m)
Unholding Height (ft. -in - m)
Slewing Range (degrees)
End hose length (ft. - m)
5 125
122-5 137.3
107 32.6
95-3 29
24-4 7.4
730° 730°
12 3.5
5 125
122-5 37.3
107 32.6
92-2 28.1
24-4 7.4
730 730
12 3.5

BOOM SPECIFICATIONS

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

US METRIC
Pipeline Diameter (in - mm) 5 125
Vertical Reach (ft. -in - m) 122-5 137.3
Horizontal Reach (ft. -in - m) 107 32.6
Net Horizontal Reach (ft. -in - m) 95-3 29
Unholding Height (ft. -in - m) 24-4 7.4
Slewing Range (degrees) 730 730
End hose length (ft. - m) 12 3.5

Four-axle conventional truck

2023-5 11on5 MPS pump with M Rock

US METRIC
Pipeline Diameter (in - mm) 5 125
Vertical Reach (ft. -in - m) 122-5 137.3
Horizontal Reach (ft. -in - m) 107 32.6
Net Horizontal Reach (ft. -in - m) 95-3 29
Unholding Height (ft. -in - m) 24-4 7.4
Slewing Range (degrees) 730 730
End hose length (ft. - m) 12 3.5

SECTION LENGTHS

First Section (ft. -in - m)
Second Section (ft. -in - m)
Third Section (ft. -in - m)
Fourth Section (ft. -in - m)
Fifth Section (ft. -in - m)
25-1 7.7
20-8 6.3
20-1 6.1
20-11 6.4
22-1 6.7
25-1 7.7
20-8 6.3
20-1 6.1
20-11 6.4
22-1 6.7

OUTRIGGERS

Design Super X Outriggers, fully hydraulic, extension and jacking Super X Outriggers, fully hydraulic, extension and jacking
Front (ft. -in - m) 22-10 6.96
Rear (ft. -in - m) 23-11 7.29
Length (ft. -in - m) 25-1 7.64
Load Front (lbs. -kg) 43,838 19,885
Load Rear (lbs. -kg) 46,086 20,904
Soil Pressure Front 626 psi(w/o Dunnage) 78 psi (w/ Dunnage) 626 psi(w/o Dunnage) 78 psi (w/ Dunnage)
Soil Pressure Rear 359 psi(w/o Dunnage) 82 psi (w/ Dunnage) 359 psi(w/o Dunnage) 82 psi (w/ Dunnage)
EASy 135 Set-up Front (ft. -in - m) 15-7 4.75
EASy 135 Set-up Rear (ft. -in - m) 15-7 4.75

SPECIFICATIONS

Pump Kits
Theor. Concrete Output Per Hour (cubic yards-cubic meters)
Max. Pressure on Concrete (psi - bar)
Strokes Per Minute
Material Cylinder Diameter (in. - mm)
Material Cylinder Stroke Length (in. - mm)
Differential Cylinder Diameter (im. - mm)
Valve Type
Maximum Aggregate Size (in. - mm)

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

US METRIC
213 163
1169 80
22 22
10 254
98 2500
437 120
Std. B-Rock Std. B-Rock
2.5 63.5

Four-axle conventional truck

2023-5 11on5 MPS pump with M Rock

US METRIC
179 137
1094 76
27 27
9 230
79 2000
4.3 110
Std. M-Rock Std. M-Rock
2.5 63.5

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

Pump Kits US METRIC
Theor. Concrete Output Per Hour (cubic yards-cubic meters) 213 163
Max. Pressure on Concrete (psi - bar) 1169 80
Strokes Per Minute 22 22
Material Cylinder Diameter (in. - mm) 10 254
Material Cylinder Stroke Length (in. - mm) 98 2500
Differential Cylinder Diameter (im. - mm) 437 120
Differential Cylinder Diameter (im. - mm) Std. B-Rock Std. B-Rock
Maximum Aggregate Size (in. - mm) 2.5 63.5

BOOM SPECIFICATIONS

Pipeline Diameter (in - mm)
Vertical Reach (ft. -in - m)
Horizontal Reach (ft. -in - m)
Net Horizontal Reach (ft. -in - m)
Unholding Height (ft. -in - m)
Slewing Range (degrees)
End hose length (ft. - m)
5 125
122-5 137.3
107 32.6
95-3 29
24-4 7.4
730 730
12 3.5
5 125
122-5 37.3
107 32.6
92-2 28.1
24-4 7.4
730 730
12 3.5

BOOM SPECIFICATIONS

US METRIC
Pipeline Diameter (in - mm) 5 125
Vertical Reach (ft. -in - m) 122-5 137.3
Horizontal Reach (ft. -in - m) 107 32.6
Net Horizontal Reach (ft. -in - m) 95-3 29
Unholding Height (ft. -in - m) 24-4 7.4
Slewing Range (degrees) 730° 730°
End hose length (ft. - m) 12 3.5

SECTION LENGTHS

US METRIC
First Section (ft. -in - m) 25-1 7.7
Second Section (ft. -in - m) 20-8 6.3
Third Section (ft. -in - m) 20-1 6.1
Fourth Section (ft. -in - m) 20-11 6.4
Fifth Section (ft. -in - m) 22-1 6.7
Pump Kits
Theor. Concrete Output Per Hour (cubic yards-cubic meters)
Max. Pressure on Concrete (psi - bar)
Strokes Per Minute
Material Cylinder Diameter (in. - mm)
Material Cylinder Stroke Length (in. - mm)
Differential Cylinder Diameter (im. - mm)
Valve Type
Maximum Aggregate Size (in. - mm)

Three-axle cab-over truck

2525H-6 120/85 MPS pump with Big Rock'"

US METRIC
213 163
1169 80
22 22
10 254
98 2500
437 120
Std. B-Rock Std. B-Rock
2.5 63.5

Four-axle conventional truck

2023-5 11on5 MPS pump with M Rock

US METRIC
179 137
1094 76
27 27
9 230
79 2000
4.3 110
Std. M-Rock Std. M-Rock
2.5 63.5

Four-axle conventional truck 2023-5 11on5 MPS pump with M Rock

Pump Kits US METRIC
Theor. Concrete Output Per Hour (cubic yards-cubic meters) 179 137
Max. Pressure on Concrete (psi - bar) 1094 76
Strokes Per Minute 27 27
Material Cylinder Diameter (in. - mm) 9 230
Material Cylinder Stroke Length (in. - mm) 79 2000
Differential Cylinder Diameter (im. - mm) 4.3 110
Differential Cylinder Diameter (im. - mm) Std. M-Rock Std. M-Rock
Maximum Aggregate Size (in. - mm) 2.5 63.5

BOOM SPECIFICATIONS

Pipeline Diameter (in - mm)
Vertical Reach (ft. -in - m)
Horizontal Reach (ft. -in - m)
Net Horizontal Reach (ft. -in - m)
Unholding Height (ft. -in - m)
Slewing Range (degrees)
End hose length (ft. - m)
5 125
122-5 137.3
107 32.6
95-3 29
24-4 7.4
730 730
12 3.5
5 125
122-5 37.3
107 32.6
92-2 28.1
24-4 7.4
730 730
12 3.5

BOOM SPECIFICATIONS

US METRIC
Pipeline Diameter (in - mm) 5 125
Vertical Reach (ft. -in - m) 122-5 137.3
Horizontal Reach (ft. -in - m) 107 32.6
Net Horizontal Reach (ft. -in - m) 95-3 29
Unholding Height (ft. -in - m) 24-4 7.4
Slewing Range (degrees) 730° 730°
End hose length (ft. - m) 12 3.5

SECTION LENGTHS

US METRIC
First Section (ft. -in - m) 25-1 7.7
Second Section (ft. -in - m) 20-8 6.3
Third Section (ft. -in - m) 20-1 6.1
Fourth Section (ft. -in - m) 20-11 6.4
Fifth Section (ft. -in - m) 22-1 6.7

OUTRIGGERS

us metric
Design Super X Outriggers, fully hydraulic, extension and jacking Super X Outriggers, fully hydraulic, extension and jacking
Front (ft. -in - m) 22-10 6.96
Rear (ft. -in - m) 23-11 7.29
Length (ft. -in - m) 25-1 7.64
Load Front (lbs. -kg) 43,838 19,885
Load Rear (lbs. -kg) 46,086 20,904
Soil Pressure Front 626 psi(w/o Dunnage) 78 psi (w/ Dunnage) 626 psi(w/o Dunnage) 78 psi (w/ Dunnage)
Soil Pressure Rear 359 psi(w/o Dunnage) 82 psi (w/ Dunnage) 359 psi(w/o Dunnage) 82 psi (w/ Dunnage)
EASy 135 Set-up Front (ft. -in - m) 15-7 4.75
EASy 135 Set-up Rear (ft. -in - m) 15-7 4.75

Need more information? Call us on (225) 355-6243 to speak with one of our experts.
