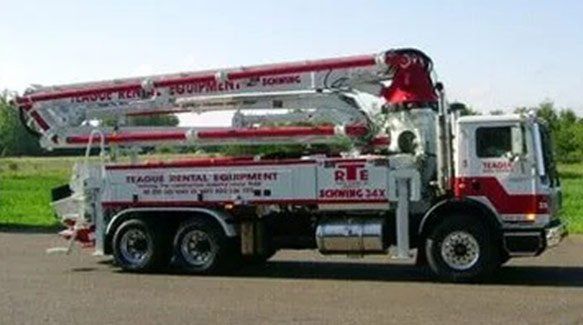

Concrete Pumping Equipment KVM 34 X
With 112-feet of reach and output to 178 cubic yards per hour.
SPECIFICATIONS
| US | Metric | |
|---|---|---|
| Vertical Reach | 111′ 6″ | 34 m |
| Horizontal Reach | 90′ 6″ | 27.5 m |
| Reach from Slewing Axis | 98′ 6″ | 30 m |
| Pipeline Diameter | 5 in | 125 mm |
| Boom Type/ Sections | Overhead Roll & Fold/ 4 | |
| Boom Rotation | 550 degrees | |
| Minimum Unfolding Height | 27′ 5″ | 7.8 m |
| Outrigger Type- Front | X, Telescopic | |
| Outrigger Type- Rear X | Telescopic | |
| End Hose Length | 12′ | 4000 mm |
| Outrigger Width, Front | 20′ 5″ | 6.2 m |
| Outrigger Width, Rear | 18′ 8″ | 5.7 m |
| Outrigger Length | 24′ 5″ | 7.4 m |
PUMP SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| Theor. Concrete Output | 178 cu yds/h | 136 cu m/h |
| Max. Pressure on Concrete | 1233 psi | 85 bar |
| Max. Strokes Per Minute | 23 | |
| Max. Aggregate size | 2.5 in | 63.5 mm |
| Material Cylinder Diameter | 10 in | 254mm |
| Material Cylinder Stroke | 79 in | 2006 mm |
| Differential Cylinder Diameter | 4.7 in | 120 mm |
