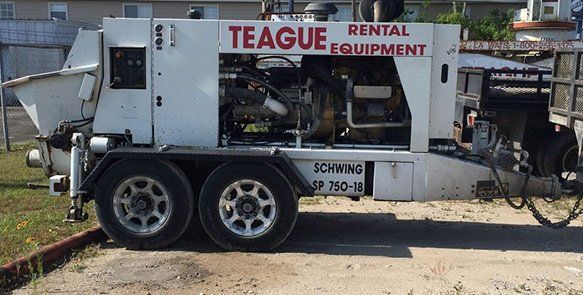

SP 750 18 RENTALS WITHIN
100 MILES OF BATON ROUGE, LA
SPECIFICATIONS
| U.S. | Metric | |
|---|---|---|
| Concrete Output Per Hour | 70 cu yds | 54 cu m |
| Maximum Pressure on Concrete | 1100 psi | 76 bar |
| Maximum Aggregate Size | 1.5 in | 38 mm |
| Concrete Cylinder Diameter | 7 in | 180 mm |
| Concrete Cylinder Stroke Length | 39 in | 1000 mm |
| Differential Piston/Rod Diameter | 3.54/ 1.96 in | 90/ 50 mm |
| Outlet Diameter | 5 in | 125 mm |
| Concrete Valve Type | Long Rock™ | |
| Shifting Cylinders | 2 | |
| Max. Pump Strokes Per Minute | 35 | |
| Volume Control | 0 to Maximum | |
| Hydraulic System | Open Loop | |
| Main Hydraulic Pump | A11VO130 | |
| Hydraulic Pressure | 4350 psi | 300 bar |
| Hydraulic Tank Capacity | 112 gal | 424 | |
| Engine Model – Diesel Tier 3 | CAT® 4.4 T 2200 RPM | |
| Engine Family | BPKXL04.4NM2 | |
| Engine Power | 100 hp | 74.6 kw |
| Engine Model – Diesel Tier 4 | CAT® 3.4 B | |
| Fuel Tank Capacity | 39 gal | 148 | |
| Hopper Capacity | 13 cu ft | .38 cu m |
| Hopper-Height | 51 in | 1292 mm |
| Axle | Tandem Standard | |
| Axle Capacity Rating | 11000 lbs | 4990 kg |
| Tires | ||
| Tandem Axle-Tires | ST 235/80 R16 | |
| Brakes | Electric | |
| Outrigger Legs | Manual Standard |
| U.S. | Metric | |
|---|---|---|
| Length | 16′ 5″ | 4997 mm |
| Width | 6′ 6″ | 1929 mm |
| Height | 8′ 6″ | 2590 mm |
| Unit Weight (Tier 3) | 8750 lbs | 3969 kg |
| Unit Weight (Tier 4) | 8850 lbs | 4014 kg |
| Remote Control Cable | 100 ft | 30.5 m |
*Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice.
