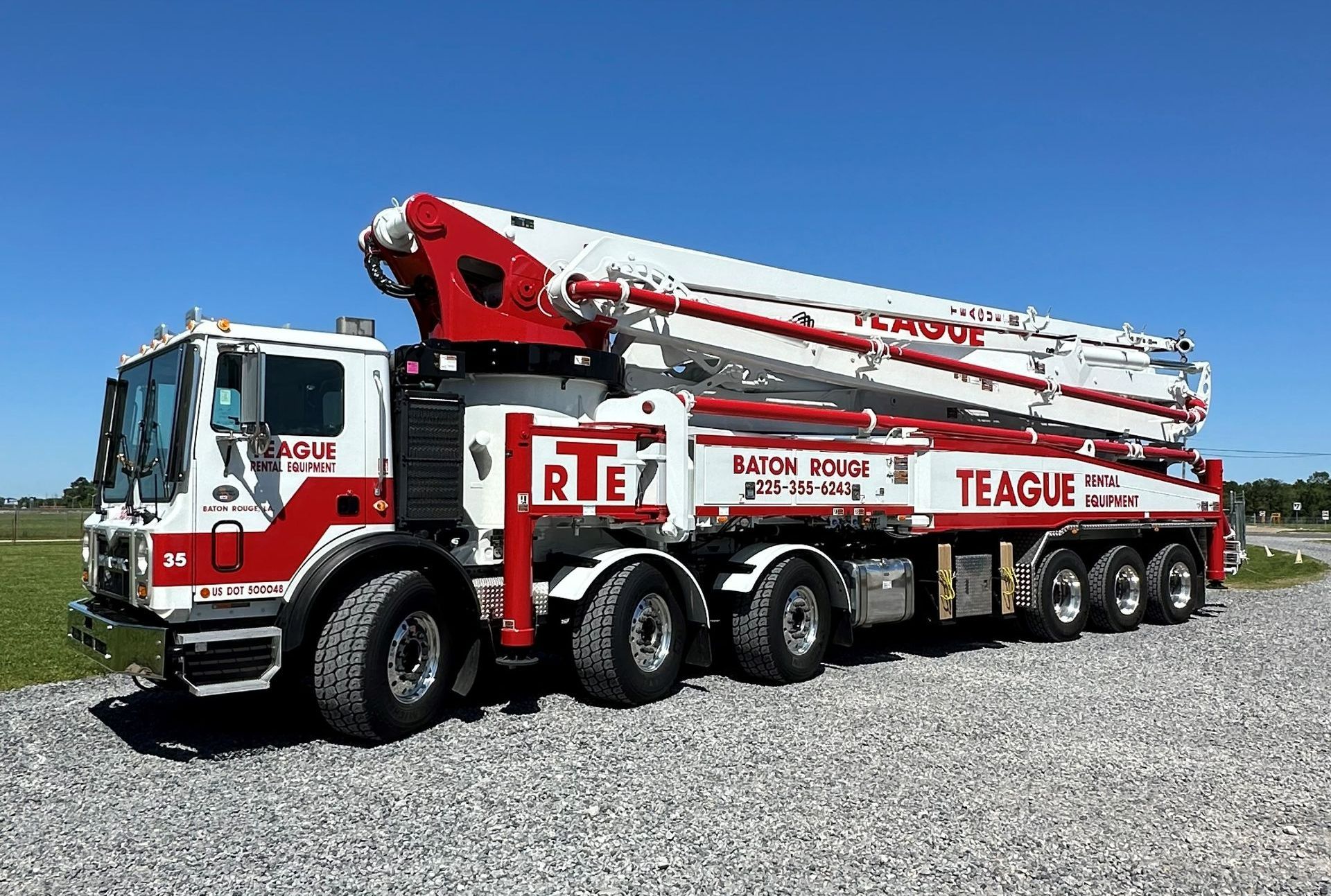

PROUDLY OFFERING S 56 SXF RENTALS WITH OPERATORS IN BATON ROUGE, & THE SURROUNDING AREAS

SPECIFICATIONS

	US
Vertical Reach	181'1"
Horizontal Reach from Slewing Axis	164'
Slewing Range	730 degrees (365 left & 365 right)
Design	Five Section Roll & Fold Boom
SECTION LENGTHS
Main Section	38'4"
Second Section	31'7"
Third Section	29'9"
Fourth Section	33'6"
Tip Section	33'1"
Minimum Unfolding Height	37'9"
BOOM SECTION WORKING RANGE
Main Section	95 Degrees
Second Section	185 Degrees
Third Section	185 Degrees
Fourth Section	185 Degrees
Tip Section	210 Degrees
Boom Pipeline	125mm, Super 3000, Metric Ends
Deck Pipeline	125mm, Super 3000, Metric Ends
Boom End Hose	10' Coupled One End - 2940 PSI
Pipe Line Clamp Size	5-1/2" raised end
OUTRIGGER SPREAD
Front (side to side)	32' 1"
Rear (side to side)	38'6"
Length	33'10"
MAX. OUTRIGGER LOAD
Front	78,700 lbs.
Rear	69,700 lbs.

OUTRIGGER FOOTPLATE DIMENTIONS ‎ ‎ ‎ ‎ ‎ ‎ ‎
Front	⌀11.8"
Rear	⌀11.8"
MAX. OUTRIGGER SOIL PRESSURE
Front	722 psi (w/o Dunnage) 127 psi w/Dunnage)
Rear	504 psi (w/o Dunnage) 112 psi (w/Dunnage)

	U.S.
Theor. Concrete Output	213 cu yds/h
Max. Pressure on Concrete	1169 psi
Max. Strokes Per Minute	22
Material Cylinder Diameter	1011
Material Cylinder Stroke Length	99 in
Differential Cylinder Diameter	4.7 in
